Advantage of biomass pellet making machine:
1. Gearbox: driving with high-precision gears, anto-matic lubricant
pump system to keep the gearbox working stability.
The warranty of the gearbox are 5 years.
2. Electrical motor: vertical design for the motor, mounting hole
with output as the center, equidistant distribution around,
more powerful and stability of machine working.
3. Blower system: Located in one side of work bin, free control the
working time, the main function is dedusting
and discharge steam.
4. Working parts: ring-die and roller materials are alloy steel,
after heat treatment, the hardness can be more than 52.
The serivice time can be 1800~2000 hours.
The roller working manner is from inside to outside press,
centrifugal force and extrusion pressure together, produced
more capacity. And the special design is 4-rollers working, to
increase press rate.
Ring-die is vertical double-deck structure. It means you can use
one mould with different hole size.
Product features of biomass pellet making machine:
1. FD series Design of the ring-die wood pellet machine: double
vertical. The electrical motor is vertical, the ring-die is
vertical.
2. They are professional machines for wood, straw, rotton stalk,
rice husk, peanut shell, bamboo, empty fruit branch,
palm fiber, ect.
3. Warranty time: the electrica motor is one year, the machine is 3
year.
4. After-sales service: Life time after-sales serives.
Technical parameters of biomass pellet making machine:
Technical parameters
| Model No. | Ring die pellet making machine FD1000 |
| Output pellets diameter | 6~12mm |
| Output | 3.0~4.0T/H |
Mainframe
| Power of main motor | 200KW |
| Model No. of main motor | 315L-4 |
| Voltage of main motor | 380V / 3 phase / 50hz |
| Packing size | 2650*1450*2100 mm |
| Gross weight | 8500KG |

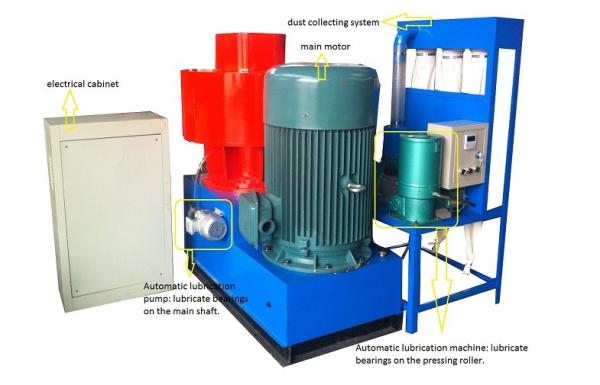

Lubrication system
| Lubricate bearings on the main shaft | 0.37KW automatic lubricant pump |
| Lubricate bearings on the pressing roller | 0.37KW automatic machine |
Ring die
| The diameter of the ring-die | 1000mm |
| Thickness of the ring-die | 65mm |
| The material of the ring-die | Alloy steel, heat treatment, hardness more than 52HRC. |
| Dust collecting system | Power of the dust-collector | 1.1KW / 3 phase / 50hz |
Electric control cabinet
| Packing size | 0.8*0.8*1.5m |
| Gross weight | 250KG |
| Gearbox | Standard industrial gear box, high precise gears |
