    Double Roller Shredder Wood Crusher Machine With Big Feeder Opening

    Ask Lasest Price
    Model Number : Shredder 500, shredder 600
    Certification : CE, ISO
    Price : USD5000-USD7000 per set
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 15-20 days after receive deposit
    • Product Details
    • Company Profile

    Double Roller Shredder Wood Crusher Machine With Big Feeder Opening

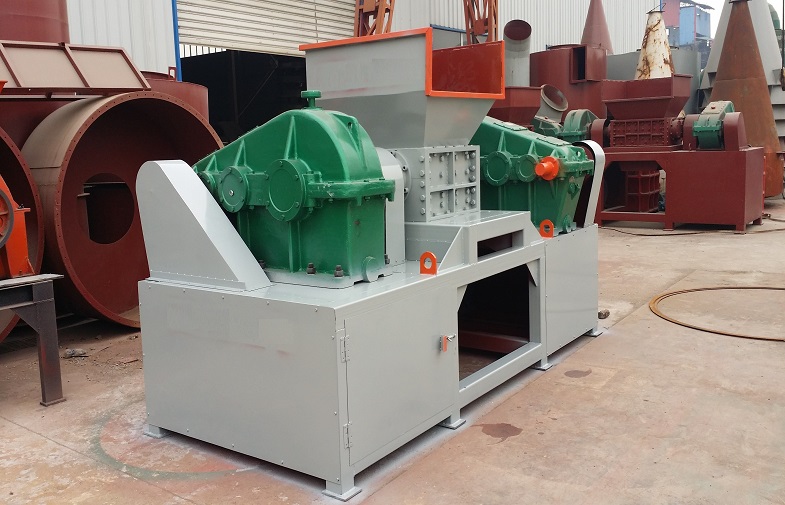

    Double roller shredder 500 model and 600 model


    Application of the shredder

    Double-roller shredder is widely applied in construction waste, industrial waste, domestic waste, municipal waste, garden waste, medical waste, food waste, and biomass materials waste crushing and recycling fields. For example, you can use double-roller shredder to crush scrap steel, scrap iron, waste rubber, waste plastic, scrap wood pallet, cloth, and so many big materials into small broken piece.


    Working principle

    Double-roller shredder use dual-motor to drive dual-gearbox, turn high rotate speed of the electric motors into low rotate speed of cutter rollers by gearboxes, then cutting, squeezing, and tearing big materials, shred them into small broken pieces.

    The rotate speed of the cutter roller is nearly 10-25RPM. Low rotate speed with high torque force. And the materials of cutters are high quality alloy steel with good abrasion resistance.


    The performance characteristics

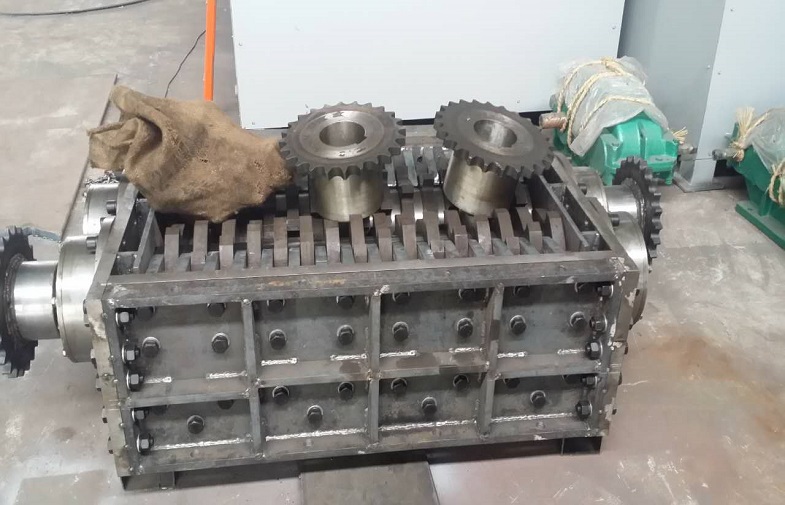

    1. The rotate cutters are made by high quality alloy tool steel with very high tear strength, high abrasion resistance. The cutters are scalable and adjustable. And they can be sharpened repeatedly when they are blunt, long service time.

    2. The rotate speed of the cutter is very low, the machine with high torque force, heavy energy with high crushing capacity.

    3. Composite structure frame made of special thick plate precision machining, it is very strong and durable, resistant high torque.


    Technical parameter

    Model No.500600
    Power7.5KW * 2
    Gearbox type350 * 2400 * 2
    Materials of the hob cutters9CrSi (Optional)
    Diameter of the hob cuttersφ220 mm
    Thickness of hob cutters20 mm10 mm20 mm
    Quantity of hob cutters16 pcs48 pcs24 pcs
    Rotate speed of the hob cutters18-25 RPM
    Size of feeding materials≤400*400 mm≤500*500 mm
    Size of output broken pieces≤20mm≤10mm≤20mm
    Capacity of the machine≤1 T/H
    Dimension of the machine2.0*0.8*1.8 m2.4*0.87*2.2 m
    Weight of the machine2.3T3T
